ADC-16 Weather Station

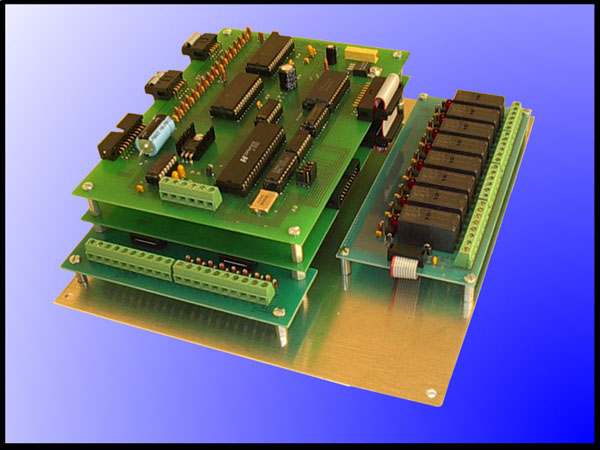

(shown with ADC-16E, EX-16 and RH-8 Relay Card mounted on MP-B)

• Designed for continuous 24 hour industrial operation
• Low cost - High reliability - 15 years of proven performance in the energy management field
• Connects to RS-232 or optional RS-422, RS-485 or USB
• Temperature Inputs for 8 sensors (outdoor, indoor, water or other)
• Inputs for wind speed and direction (anemometer)
• Inputs for humidity, rain guage, barametric pressure or other
• Expandable up to 48 analog inputs or up to 128 digital inputs
• Expandable to control up to 112 relays
• Weather Station software available

The ADC-16 Weather Station allows a conventional desktop or laptop PC to be used to monitor and log weather conditions which include wind speed and direction, temperature, humidity, barometric pressure, rain or snow levels and other data. Relays are provided for the purpose of sounding alarms or other functions on high wind levels, changes in temperature or barometric pressure, high rain levels or other conditions. Relays may also be used to maintain indoor temperature or water temperatures with the temperature sensors provided.

WA-1 Anemometer - Wind Sensor
